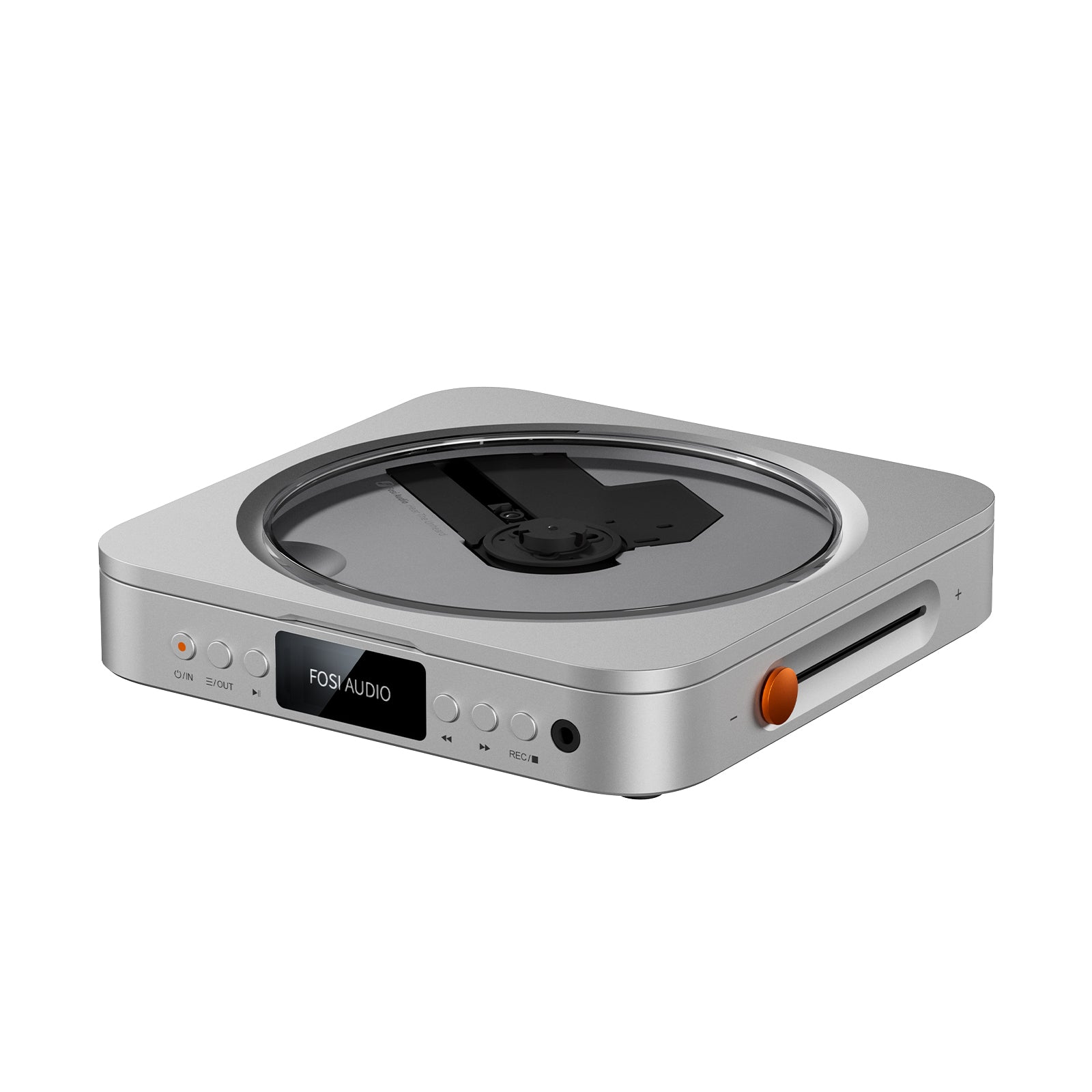

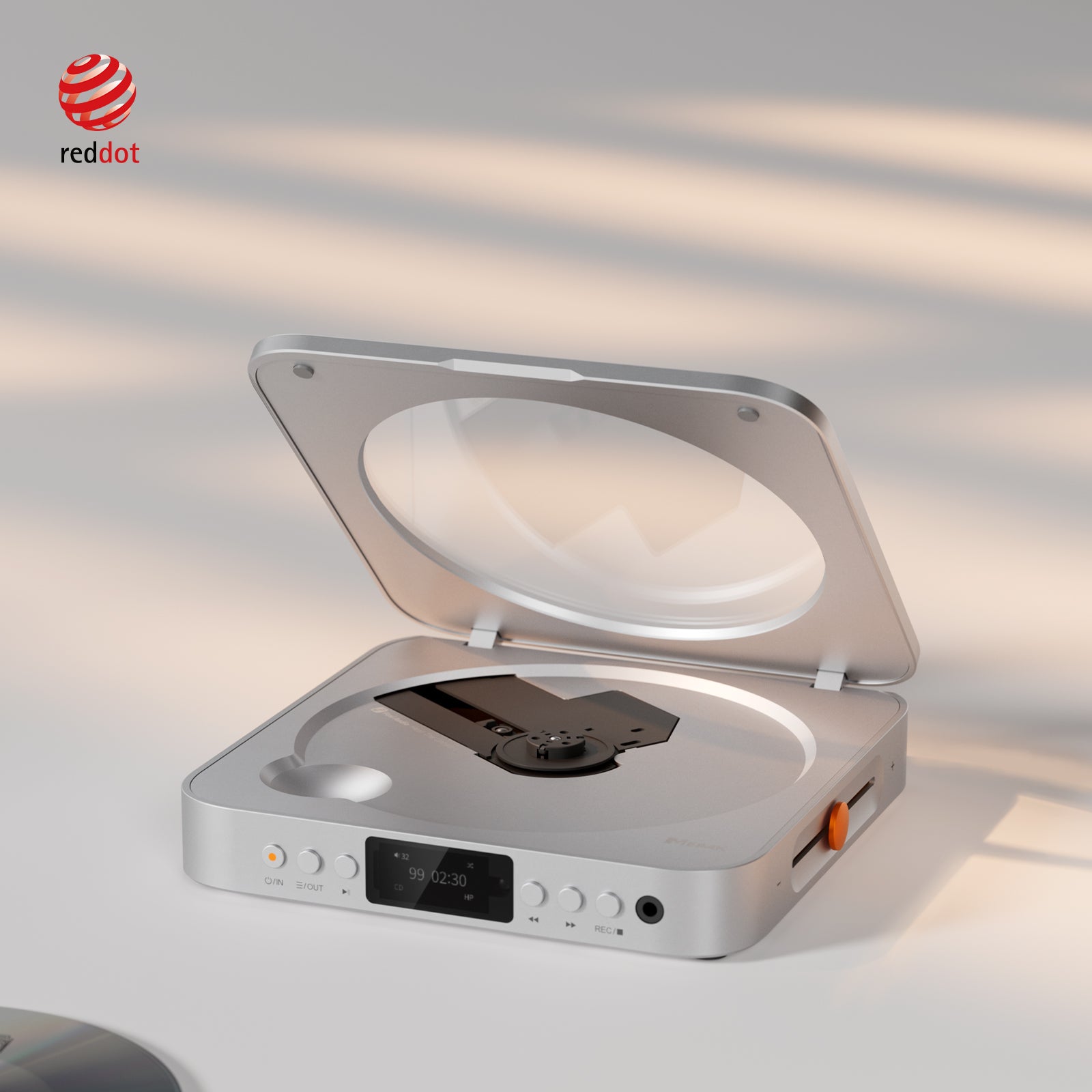

Fosi Audio Merak CD Player
Merak takes its name from Beta Ursae Majoris, a star in the constellation Ursa Major. It has often been used as a reference point for locating the North Star, symbolizing guidance and direction.
Inspired by this meaning, we hope Merak becomes a point of reference in your listening journey—bringing more precise imaging and a more immersive experience.

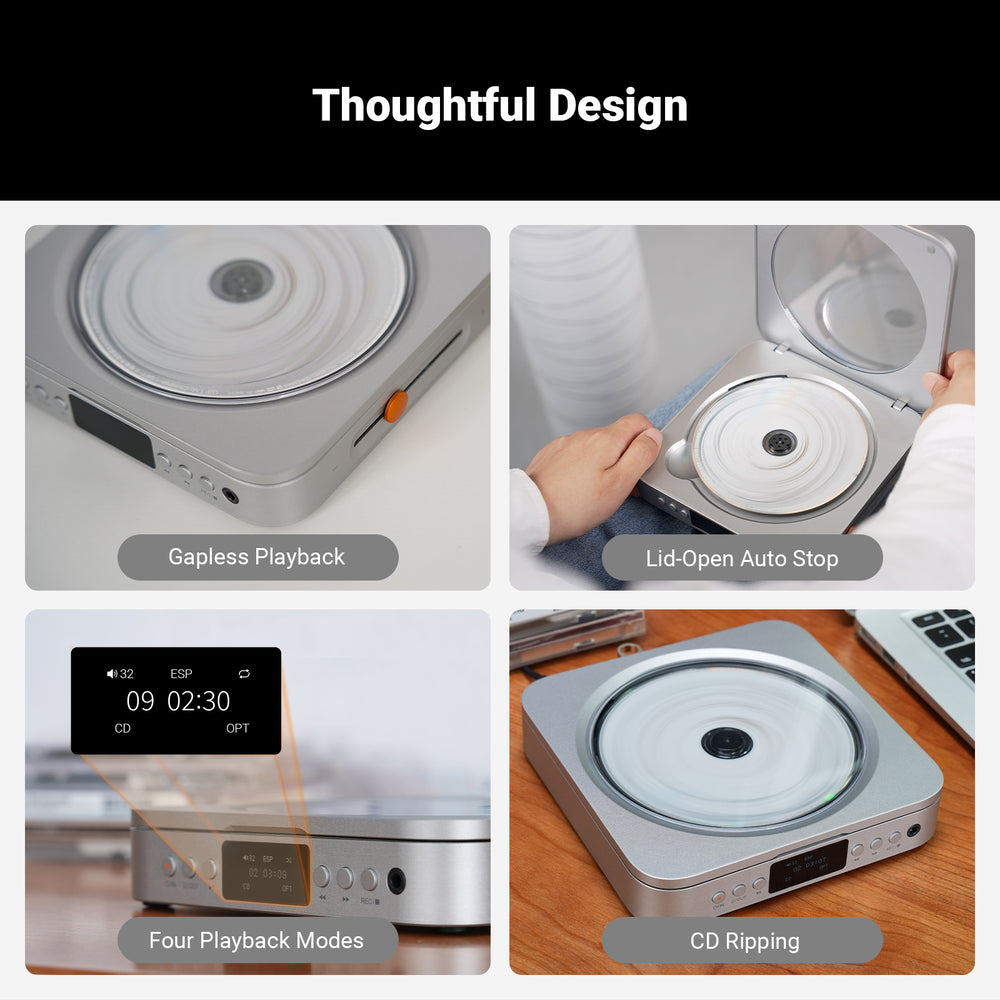

- Enable Smooth Gapless Playback
- Improve Playback with ESP Protection
- Support Easy CD Ripping
Seamless System Integration
With optical and line outputs, it connects easily to DACs, amplifiers, or active speakers.
The included remote control allows convenient input/output switching and track selection.
A 12V Trigger output enables synchronized power with Fosi devices like ZD3 and ZA3.

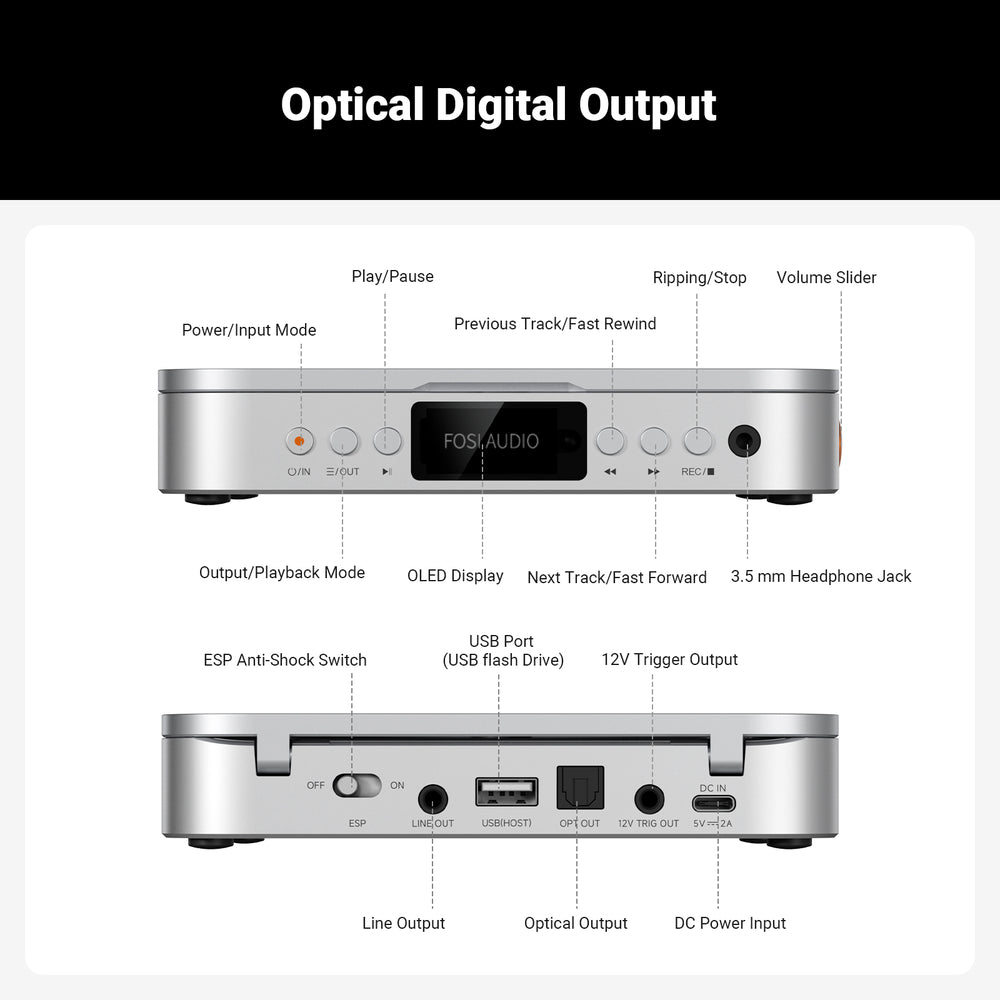

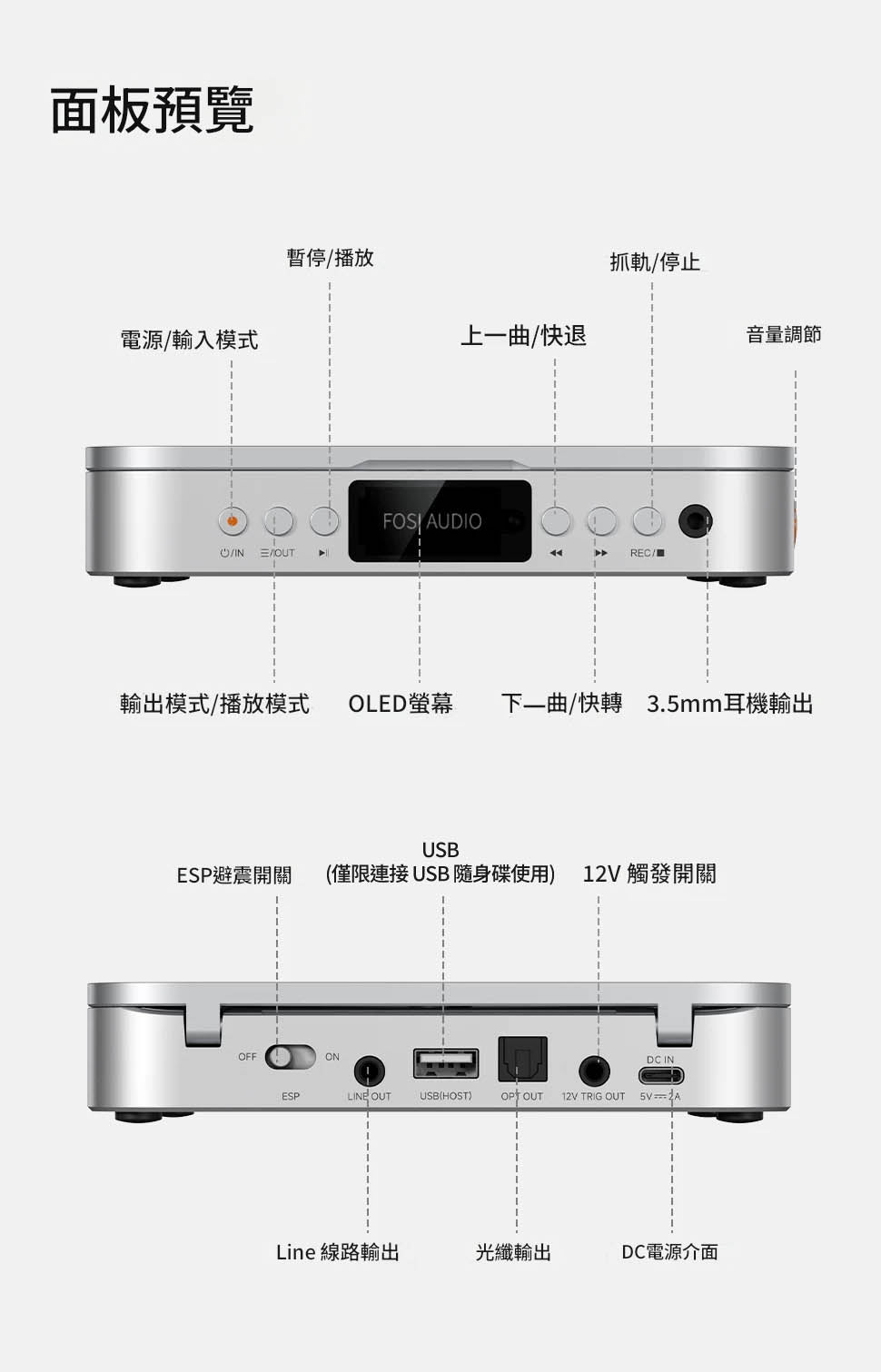

Input: USB-A (USB flash drives), CD
Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger
Product details

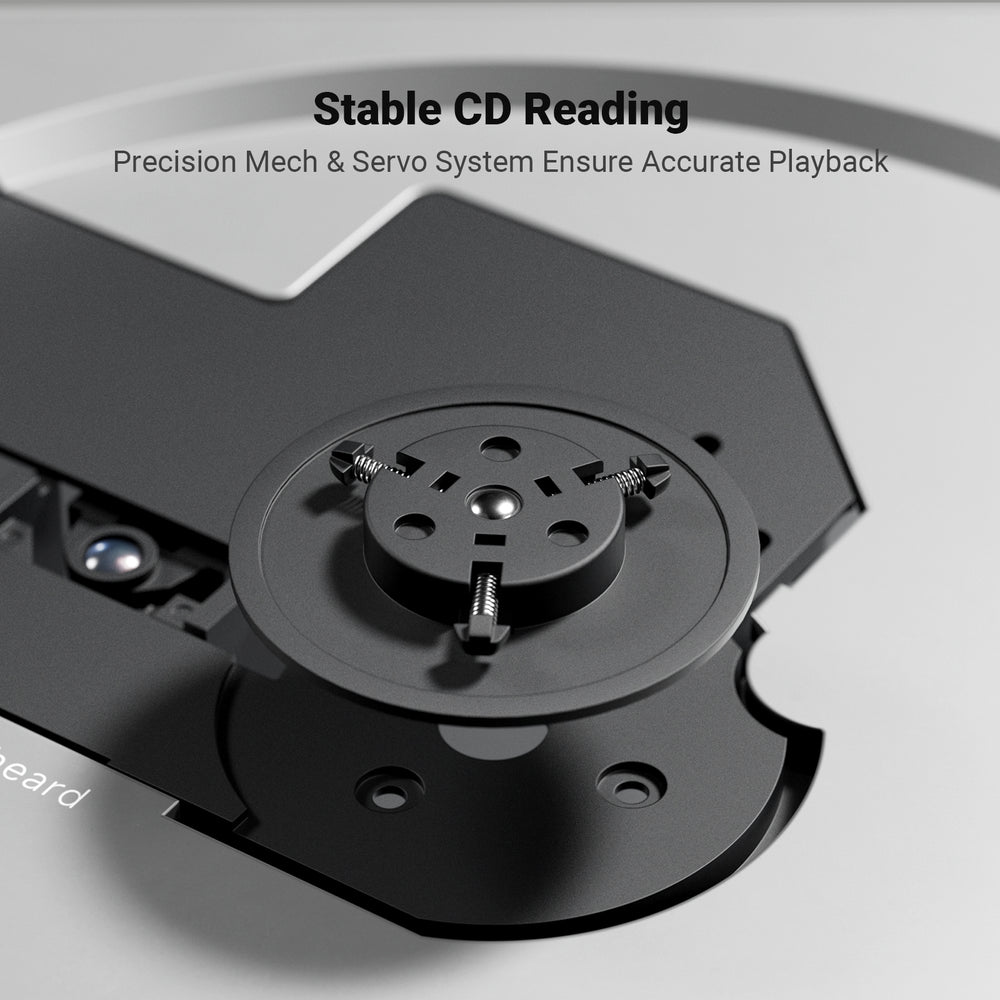

Precision CD Transport: Optimized servo system ensures accurate disc reading, smooth playback, and reduced wear, supporting stable long-term performance and consistent audio output.
All-in-One Audio Design: Combines CD player, DAC, and headphone amplifier in one unit, simplifying setup while maintaining low distortion and clear signal reproduction.
CD Ripping & USB Playback: Supports CD ripping to USB and direct playback, enabling easy conversion to digital files and convenient access without additional devices.
Flexible Output Connectivity: Multiple outputs support headphones, amplifiers, and active speakers, allowing seamless integration into desktop systems or larger audio setups.
ESP Anti-Skip Protection: 60-second buffering reduces interruptions from vibration, maintaining stable playback and improving reliability in movement or less controlled environments.
Specifications
Chipset: SC6137D + CS43131 + TPA6120
Max Sampling Rate
- CD: PCM 16bit / 96kHz
- USB (USB flash drives): PCM 16bit / 96kHz
Headphone Impedance: 16–300Ω
Input: USB-A (USB flash drives), CD
Output: 3.5mm Headphones Jack, LINE, OPT, 12V Trigger
CD Formats: CDDA, CD-R / CD-RW (partially readable). Original pressed discs are recommended
CD-R Formats: FLAC / WAV / WMA / AAC / MP3
SACD Playback: Only SACDs with a CD layer are supported
Formats for USB Drive Playback: MP3 / WAV / FLAC / AAC / APE / WMA
IR Remote Control: Supports a maximum operating distance of up to 7 meters
Input Voltage: DC 5V / 2A
Firmware Upgrade: Firmware can be updated online via a USB-A port using a USB flash drive
3.5mm Output Performance (CD)
Rated Output Power: L+R ≥ 210mW + 210mW (32Ω / THD+N < 1%)
SNR: 121 dB (A-weighted)
THD+N: 0.002% (A-weighted)
Dynamic Range: 121 dB
Noise Floor: ≤ 3µV (A-weighted)
LINE Output Performance (CD)
Output Level: ≥ 2Vrms
SNR: 124 dB (A-weighted)
THD+N: 0.0009% (A-weighted)
Dynamic Range: 124 dB
Noise Floor: ≤ 3µV (A-weighted)
2 Years Warranty
