Features
Overview

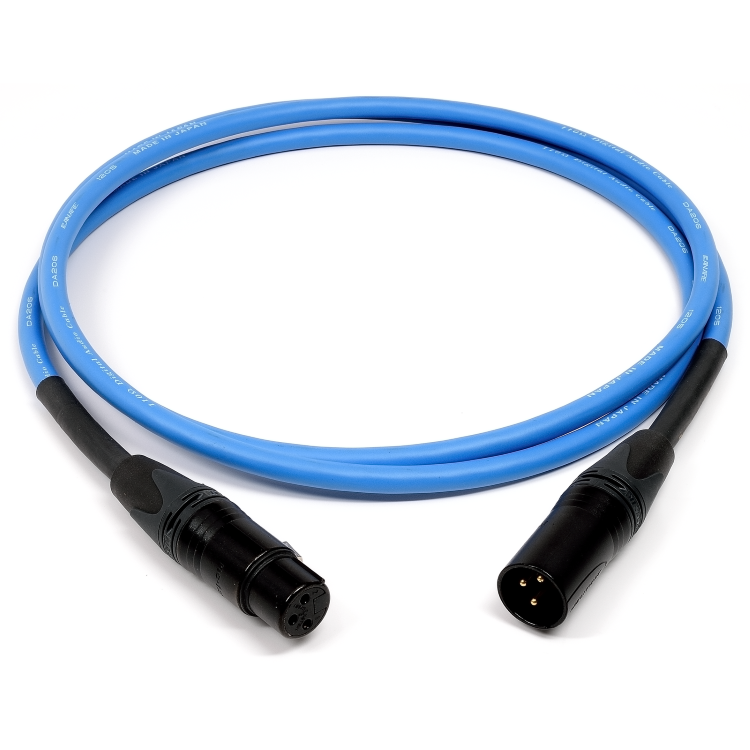

Benchmark Studio&Stage™ Digital XLR Cables combine the best cable, connectors, and construction techniques in order to offer performance that meets the demands of world-class studios, while providing the strength and reliability required for stage applications. Canare AES/EBU Digital Audio cables are handcrafted with Canare DA206 110-ohm cable and Neutrik premium black XLR connectors with gold contacts.Specification
Specifications
- Canare DA206 110-Ohm AES/EBU Digital Audio Cable
- Large OD for high performance and low loss
- Maximum recommended AES/EBU length: 1,180 ft. (360 meters)
- 110-ohm Nominal Impedance
- Special PE Filler Rods maintain constant 110-ohm impedance
- Shield: > 95% Copper High-density Braid
- Shield DC Resistance: < 4.3 Ohms / 1000 ft.
- Conductor DC Resistance: < 10.1 Ohms/ 1000 ft.
- Nominal Capacitance: 14.6 pF / ft.
- 20 AWG, Stranded Twisted Pair Copper conductors for flexibility
- Hand assembled with true silver solder

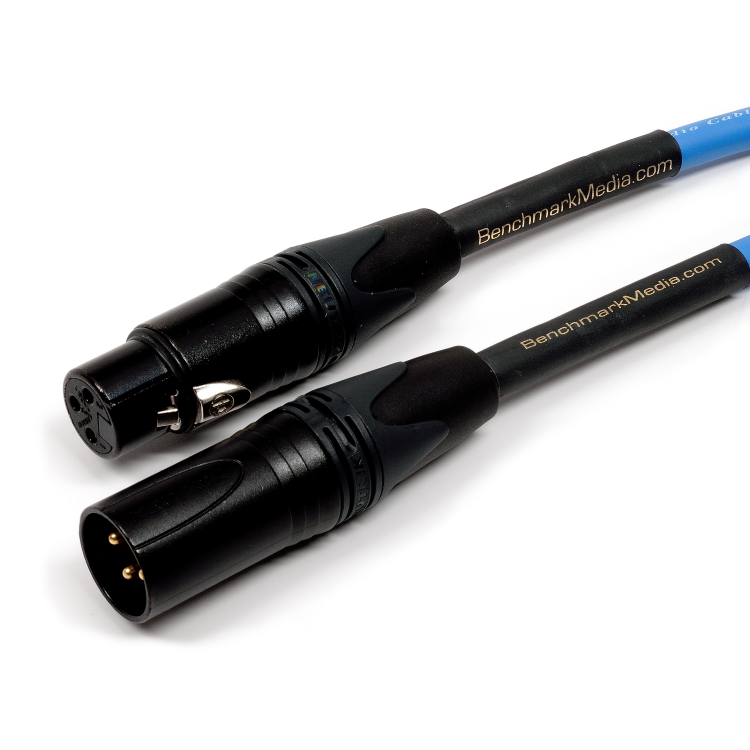

- Neutrik premium black XLR connectors with gold contacts
- Blue Jacket Color identifies this as a digital cable
- One end is XLR-Male, the other end is XLR-Female
